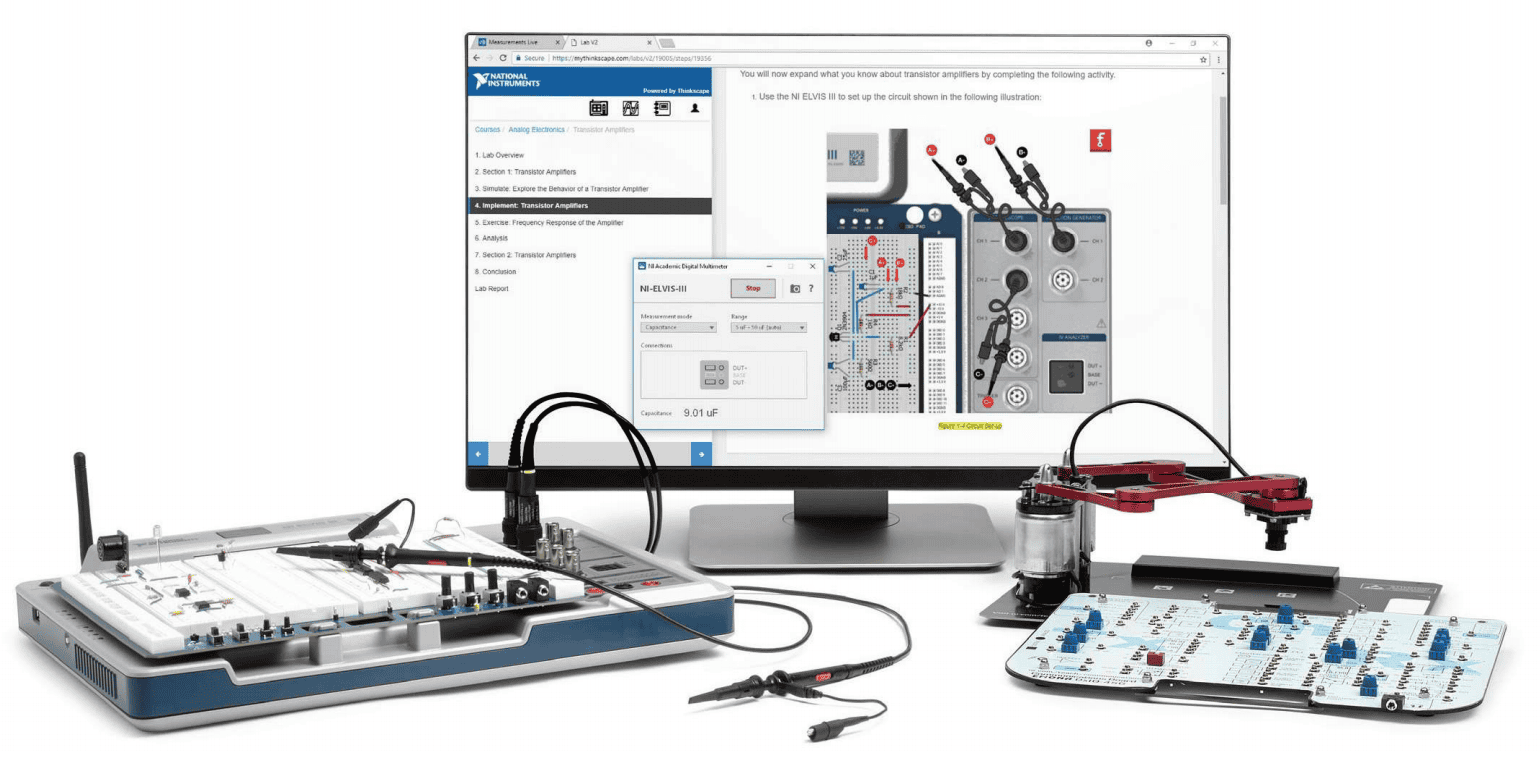

Bộ thiết bị NI ELVIS III dành cho giảng dạy về đo lường và thiết bị đo

{"id" :568021, "type_config_slider" :{"config_slider":{"spaceBetween":10,"autoplay":{"delay":5000},"lazy":true,"slidesPerView":1,"loop":true,"allowTouchMove":true,"speed":300,"slidesPerColumn":1,"pagination":{"el":".swiper-pagination","clickable":true},"navigation":{"nextEl":null,"prevEl":null},"effect":"slide","cubeEffect":{"shadow":true,"slideShadows":true,"shadowOffset":20,"shadowScale":0.939999999999999946709294817992486059665679931640625},"coverflowEffect":{"ronate":50,"stretch":0,"depth":100,"modifier":1,"slideShadows":true},"flipEffect":{"rotate":30,"slideShadows":false},"fadeEffect":{"crossFade":true},"slidesPerGroup":1},"config_slider_thumb":{"slidesPerView":4,"spaceBetween":10,"speed":300,"freeMode":true,"allowTouchMove":false,"watchSlidesVisibility":true,"watchSlidesProgress":true},"is_used_thumb":false,"is_used_pagi":true,"is_used_nav":false,"is_used_nav_thumb":false,"is_used_pagi_thumb":false,"auto_calc_height_item":1,"icon":{"nextEl":"fas fa-chevron-right","prevEl":"fas fa-chevron-left"},"responsive":{"1024":[],"768px":{"icon":{"nextEl":"fas fa-chevron-right","prevEl":"fas fa-chevron-left"},"config_slider_thumb":{"slidesPerView":4,"spaceBetween":10,"speed":300,"freeMode":true,"allowTouchMove":false,"watchSlidesVisibility":true,"watchSlidesProgress":true},"config_slider":{"spaceBetween":10,"autoplay":{"delay":5000},"lazy":true,"slidesPerView":3,"loop":true,"allowTouchMove":true,"speed":300,"slidesPerColumn":1,"pagination":{"el":".swiper-pagination","clickable":true},"navigation":{"nextEl":null,"prevEl":null},"effect":"slide","cubeEffect":{"shadow":true,"slideShadows":true,"shadowOffset":20,"shadowScale":0.939999999999999946709294817992486059665679931640625},"coverflowEffect":{"ronate":50,"stretch":0,"depth":100,"modifier":1,"slideShadows":true},"flipEffect":{"rotate":30,"slideShadows":false},"fadeEffect":{"crossFade":true},"slidesPerGroup":1}},"640px":{"icon":{"nextEl":"fas fa-chevron-right","prevEl":"fas fa-chevron-left"},"config_slider_thumb":{"slidesPerView":4,"spaceBetween":10,"speed":300,"freeMode":true,"allowTouchMove":false,"watchSlidesVisibility":true,"watchSlidesProgress":true},"config_slider":{"spaceBetween":10,"autoplay":{"delay":5000},"lazy":true,"slidesPerView":2,"loop":true,"allowTouchMove":true,"speed":300,"slidesPerColumn":1,"pagination":{"el":".swiper-pagination","clickable":true},"navigation":{"nextEl":null,"prevEl":null},"effect":"slide","cubeEffect":{"shadow":true,"slideShadows":true,"shadowOffset":20,"shadowScale":0.939999999999999946709294817992486059665679931640625},"coverflowEffect":{"ronate":50,"stretch":0,"depth":100,"modifier":1,"slideShadows":true},"flipEffect":{"rotate":30,"slideShadows":false},"fadeEffect":{"crossFade":true},"slidesPerGroup":1}},"480px":[],"375px":{"icon":{"nextEl":"fas fa-chevron-right","prevEl":"fas fa-chevron-left"},"config_slider_thumb":{"slidesPerView":4,"spaceBetween":10,"speed":300,"freeMode":true,"allowTouchMove":false,"watchSlidesVisibility":true,"watchSlidesProgress":true},"config_slider":{"spaceBetween":10,"autoplay":{"delay":5000},"lazy":true,"slidesPerView":1,"loop":true,"allowTouchMove":true,"speed":300,"slidesPerColumn":1,"pagination":{"el":".swiper-pagination","clickable":true},"navigation":{"nextEl":null,"prevEl":null},"effect":"slide","cubeEffect":{"shadow":true,"slideShadows":true,"shadowOffset":20,"shadowScale":0.939999999999999946709294817992486059665679931640625},"coverflowEffect":{"ronate":50,"stretch":0,"depth":100,"modifier":1,"slideShadows":true},"flipEffect":{"rotate":30,"slideShadows":false},"fadeEffect":{"crossFade":true},"slidesPerGroup":1}},"320px":[]}}}

Processor and FPGA: Type Xilinx Z-7020; Speed 667 MHz; Cores 2

Operating System: Supported operating system NI Linux Real-Time (32-bit)

Memory: Nonvolatile 1 GB; Volatile DDR3 512 MB; Clock frequency 533 MHz; Data bus width 16 bits

USB Port: USB host port: USB 2.0 Hi-Speed, with standard A connector, 900 mA; USB device port: USB 2.0 Hi-Speed, with standard C connector

Power Requirements: Power supply voltage range 19 V ± 5%; Power consumption: Maximum 76 W; Typical 20 W

Analog Input: Number of banks: 2, capable of independent operation; Number of channels per bank: 8 single-ended or 4 differential; ADC resolution 16 bits; Input range: ±10 V, ±5 V, ±2 V, ±1 V; Maximum sampling rate (single channel): 1 MS/s; Large signal bandwidth (-3 dB): >500 kHz

Analog Output: Number of channels: 4, capable of independent operation; DAC Resolution: 16 bits; Output range: ±10 V; Maximum update rate: 1.6 MS/s; Slew rate (100 pF load): 8.2 V/μs

Digital I/O: Number of DIO channels: 40; Direction control: Individually programmable as input or output; Logic level: 5 V compatible LVTTL input; 3.3 V LVTTL output; Pull-up/down: 40.2 kΩ pull-up to 3.3 V; Protection: ±30 V

Oscilloscope: Number of channels: 4; Maximum sampling rate (per channel): 100 - 400 MS/s; Resolution: 14 bits; Bandwidth: 50 MHz at -3 dB; Input impedance: 1 MΩ ‖ 15 pF; Input coupling: AC, DC; AC coupling cut-off frequency: 12 Hz at -3 dB

Supply includes
- NI Elvis III central processing board
- Data connection cable for NI Elvis III board
- Power cable for NI Elvis III board
- LabVIEW software
- Process measurement experiment kits (NI Measurement Kit)
- Carbon film resistors, 5 each
+ 10K ohm, carbon film, 1/4W, 5%
+ 2K ohm, carbon film, 1/4W, 5%
+ 4.7K ohm, carbon film, 1/4W, 5%
+ 100 ohm, carbon film 1/4W, 5%
+ 470 ohm, carbon film, 1/4W, 5%
+ 330 ohm, carbon film, 1/4W, 5%
+ 1K ohm, carbon film, 1/4W, 5%
+ 3K ohm, 5%, 1/4W, Carbon Film
- Ceramic capacitors 5 of each type
+ 1uF, ceramic, radial, 10%, 50V, X5R
+ 3.3uF, ceramic, radial, 10%, 50V, X5R
+ 4.7uF, ceramic, 10%, 50V, X5R, Radial
+ 10uF, ceramic, 10%, 50V, X5R, Radial
- 1 Sensor, Vibration, TH
- 1 Load Cell, Mico Parallel Beam
- 2 Strain Gage, 350 Ohms, 0.6%
- 1 RTD Sensor, Platinum, PT100
- Parts Box, 5"x8"
